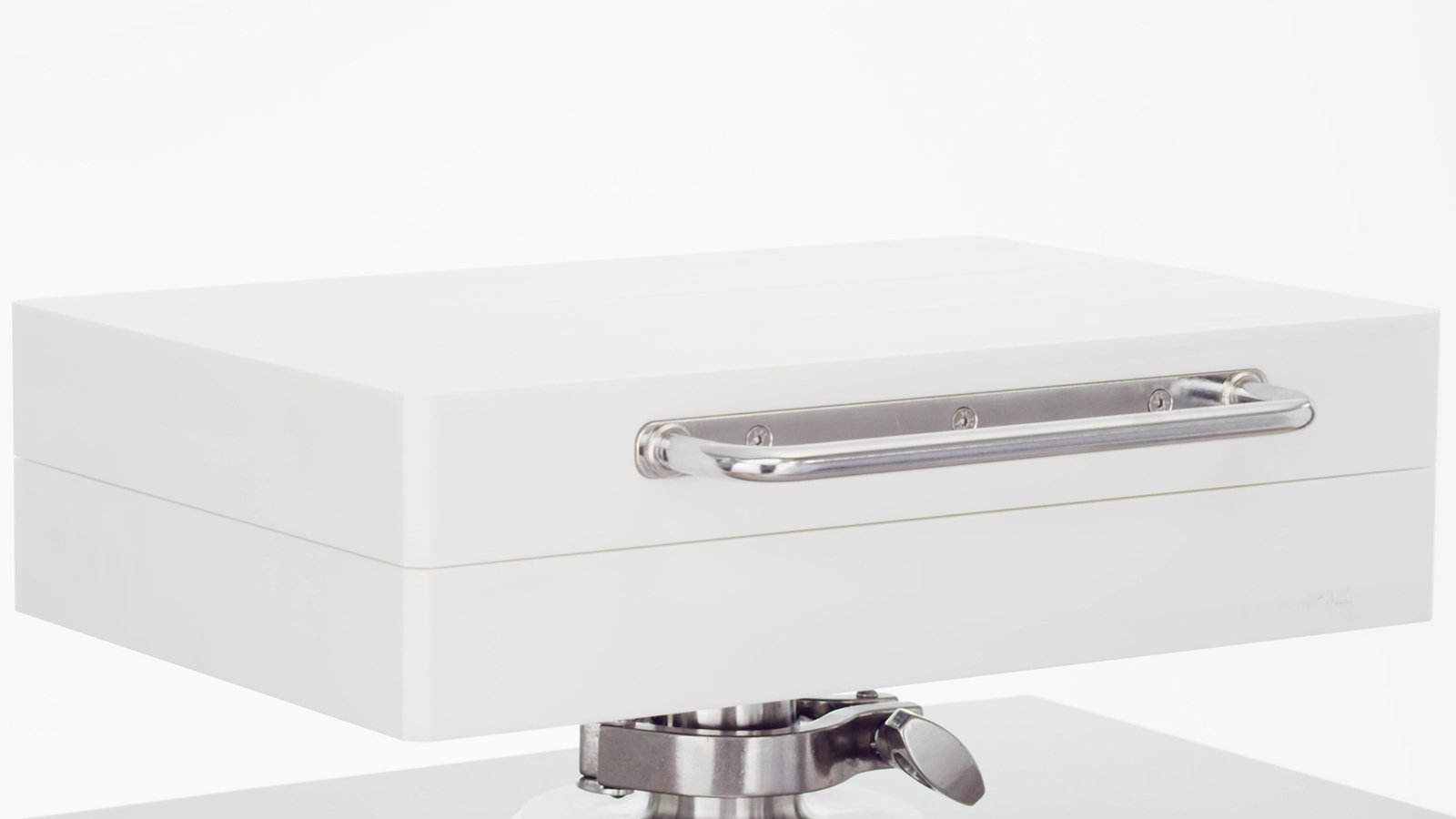

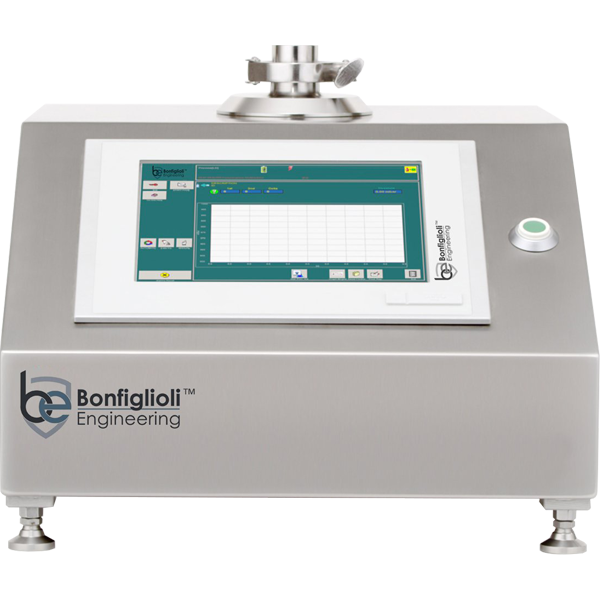

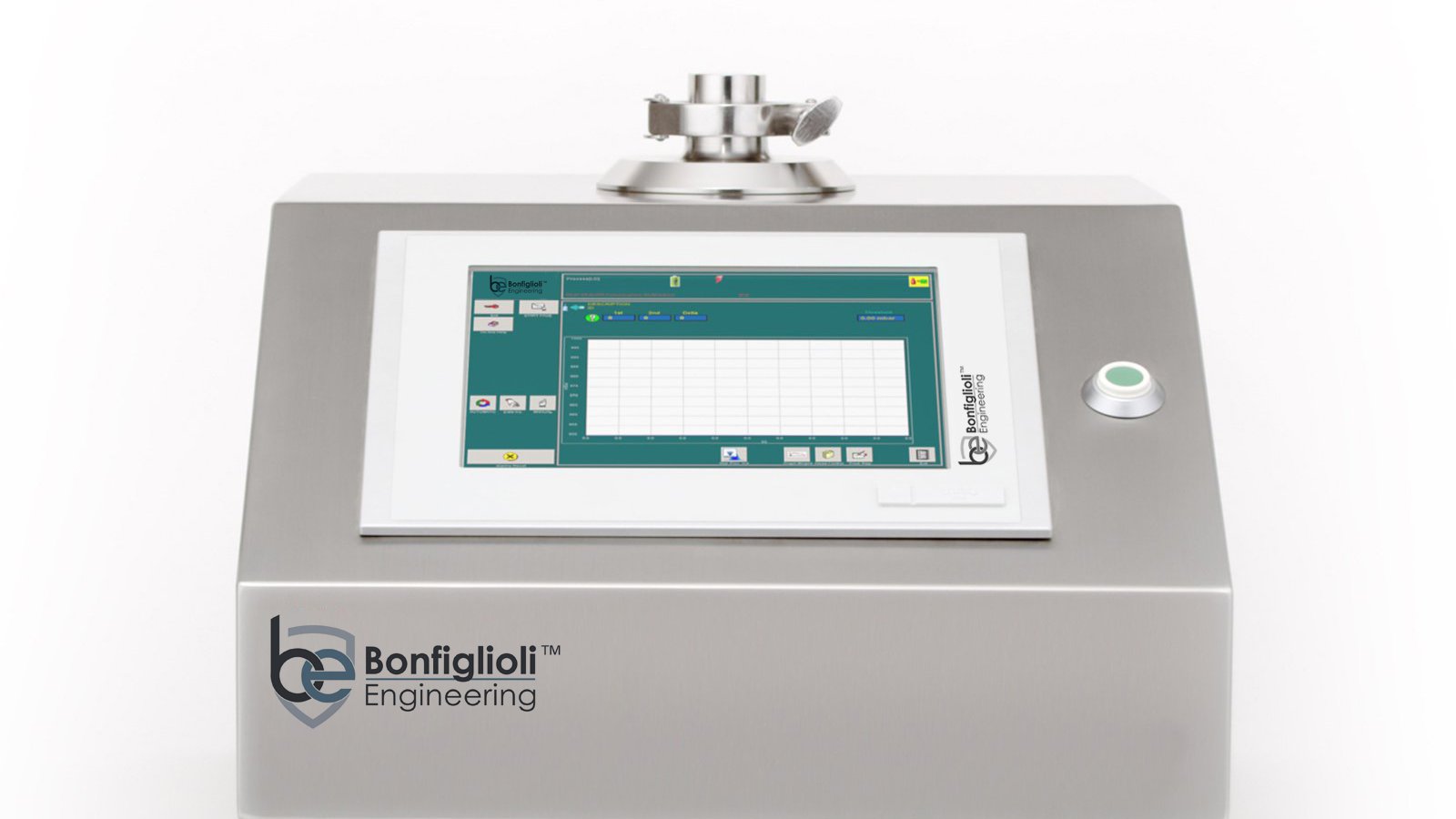

LF-S11 Benchtop CCI Tester

Food & Beverages

Non-Invasive, Non-Destructive Integrity Inspection System of finished and filled containers for laboratory and in process control applications.

Beverage

Bottles

Doy Packs

Food

Food Cans

General Line

Induction Sealed

Ready Meals

Stick Packs

icon-23

Highlights

  • • Quick and sensitive test
  • • Compact & maintenance free
  • • Vacuum and positive pressure testing
  • • Fast, reliable and repeatable results
  • • Cost-effective solution
icon-19

Technical Features

icon-12
  • Container Application: Ready Meals, General Line, Food Cans, Food, Stick Packs, Induction Sealed, Doy Pack, Bottles, Beverage
  • Products: Filled, Empty, Closed
  • Container Dimensions: From 8 x 8 x 5 mm (min) to 250 x 250 x 300 mm (max)
  • Speed: Average testing time 5 seconds/container, plus loading and unloading, manually done by operator
  • Technology: CCIT
  • Inspection Features: Non-Invasive, Non-Destructive CCIT based on Vacuum & Pressure Decay Method
  • Inspection Capabilities: Microleaks detection
icon-20

Additional Benefits

icon-12
  • System autodiagnostics available
  • Auto-diagnostics verifies optimal working condition of the testing chamber and enables machine start-up
  • Easy, quick and safe remote access
  • Barometric Compensation system to avoid any vacuum level reading variations
  • Real time display of testing cycle diagrams, statistical raw data
  • Storage of records: maintenance, production, alarms
  • Quick format changeover
  • Easy to clean - no hidden corners
  • Low power consumption
icon-21

Technology

icon-12
  • Container Closure Integrity Testing is a non-destructive measurement technology based on the following testing methods:
    • Vacuum Decay Method
    • Pressure Decay Method
  • Measurement system comprises applying a pressure differential into an airtight testing group enclosing the container.
  • The test objective is to detect container leakages by measuring the reached pressure level as well as the pressure change over test time.
  • Lid deflection technology can also be implemented to detect leaks on foils of cups or pouches together with Vacuum Decay method.
icon-22

Quality Assurance

icon-12
  • Equipment test method refers to:
    • Approved industry standard “ASTM F2338-09”: “Standard Test Method for Non-Destructive Detection of Leaks in Packages”
