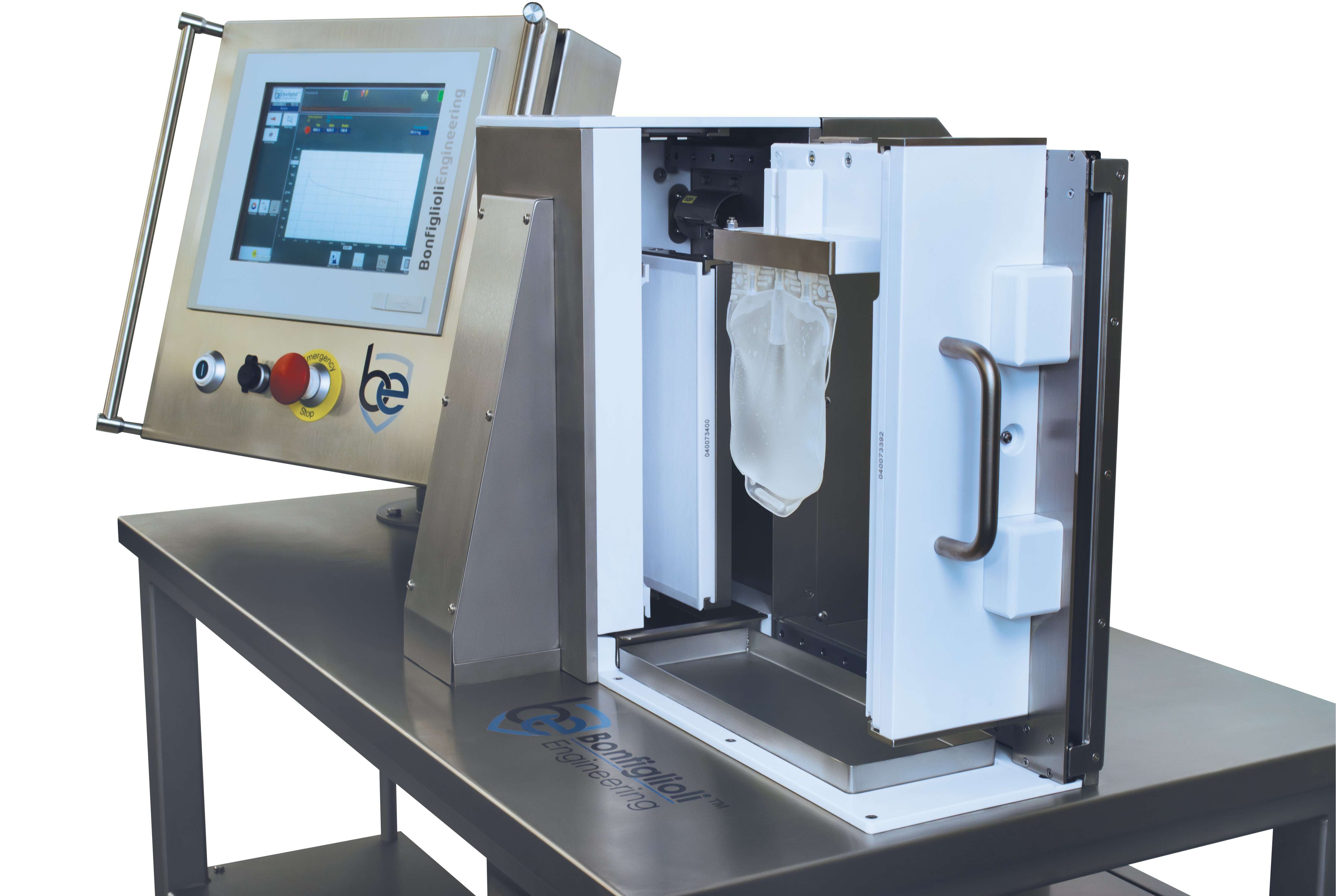

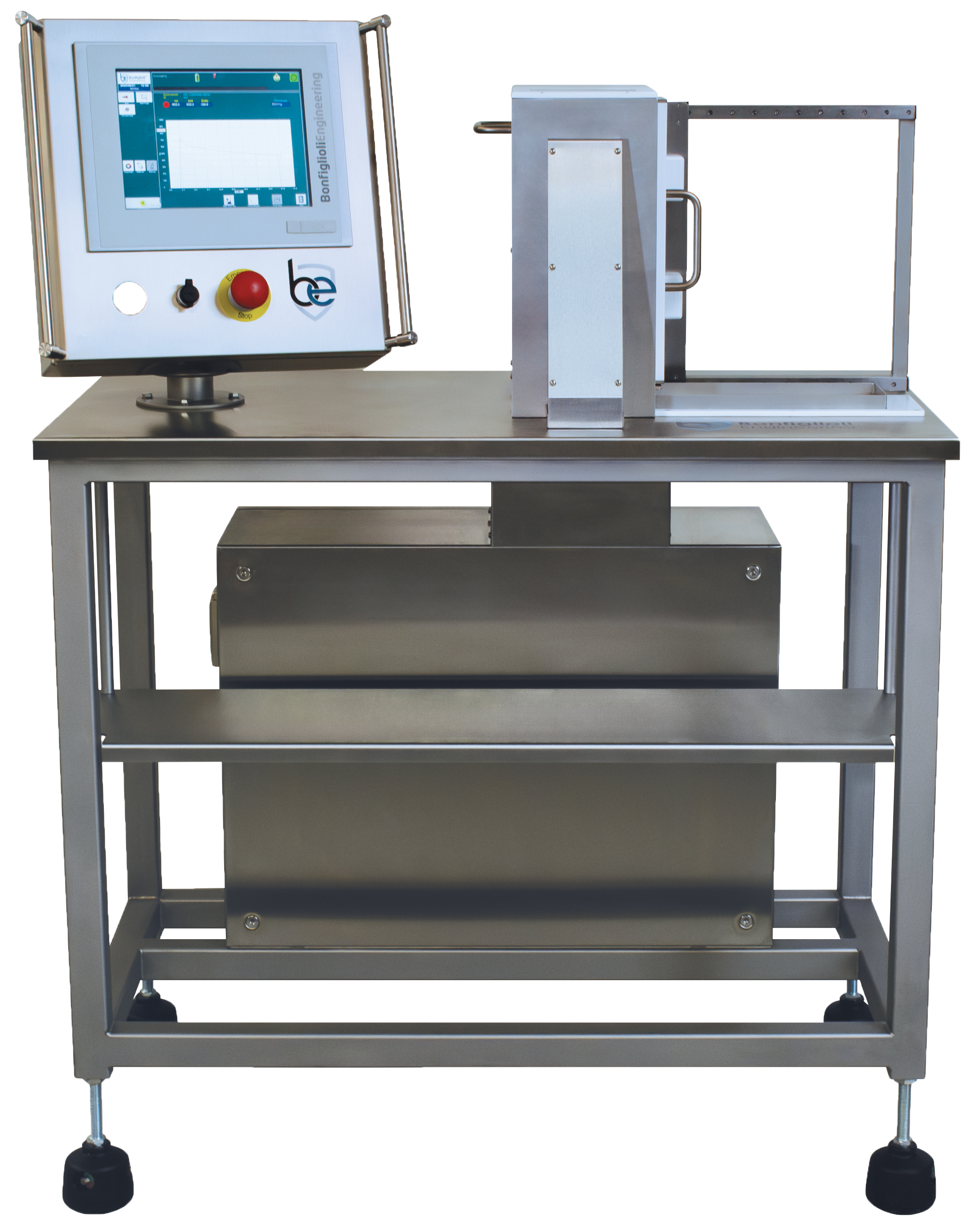

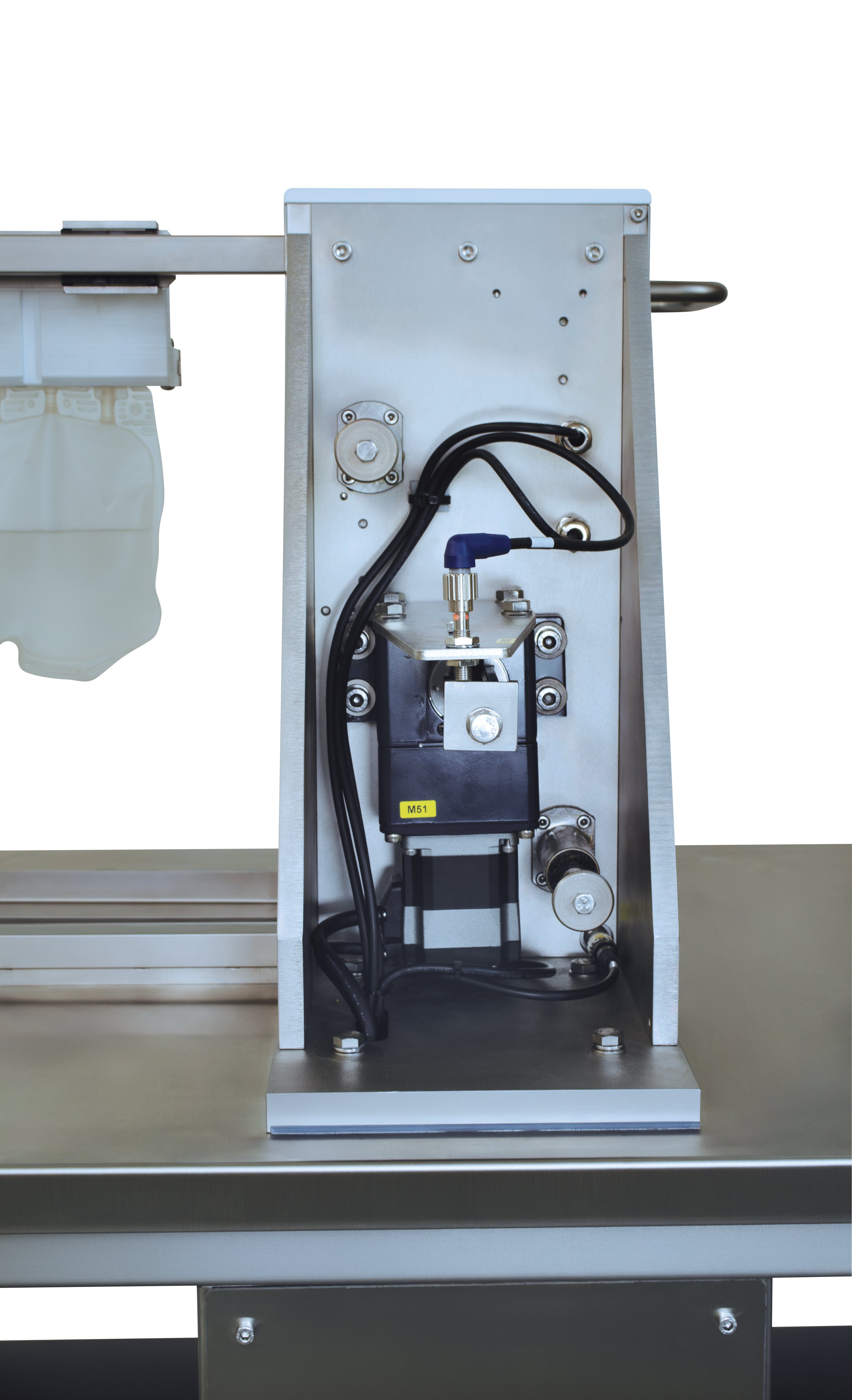

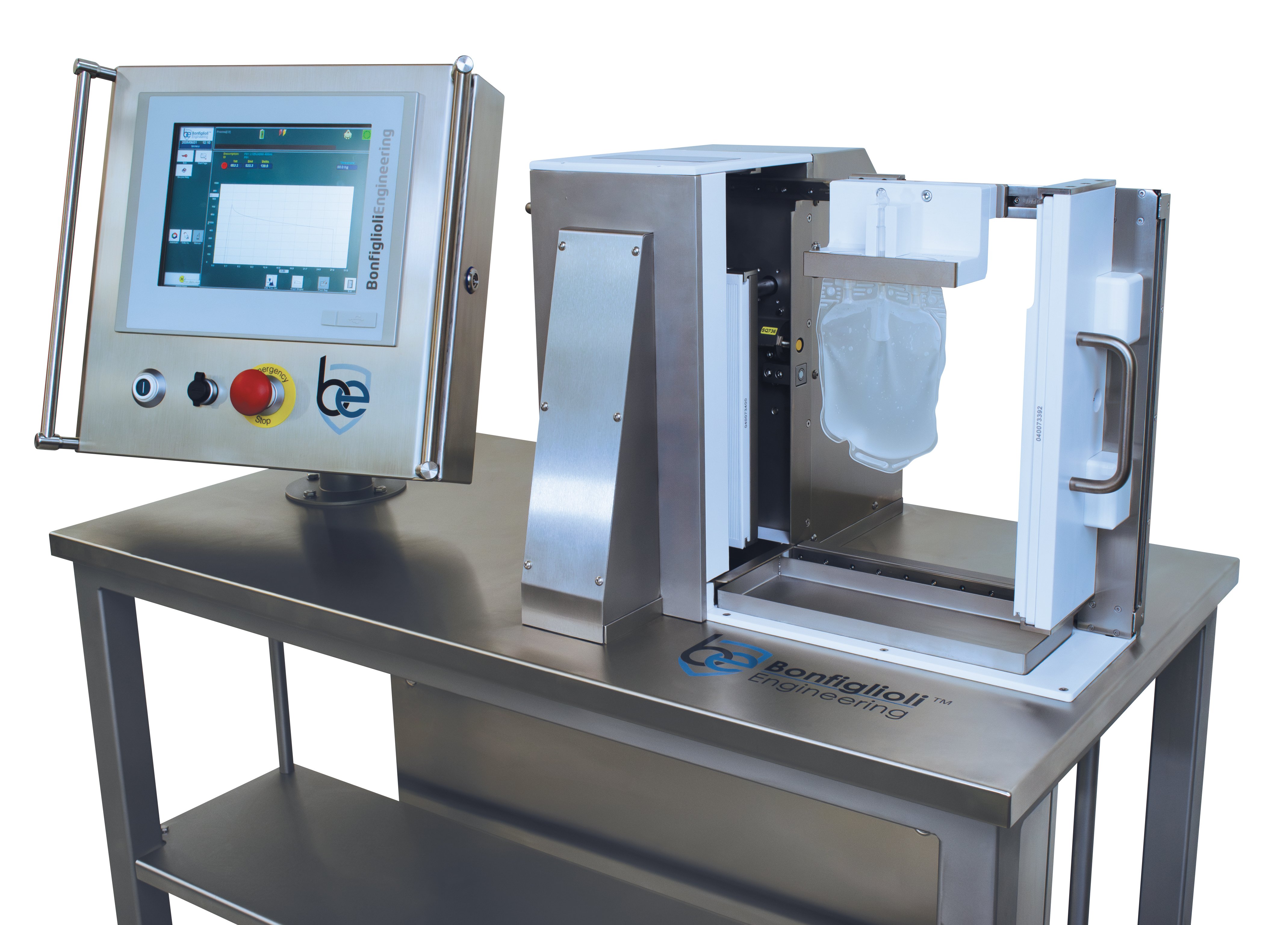

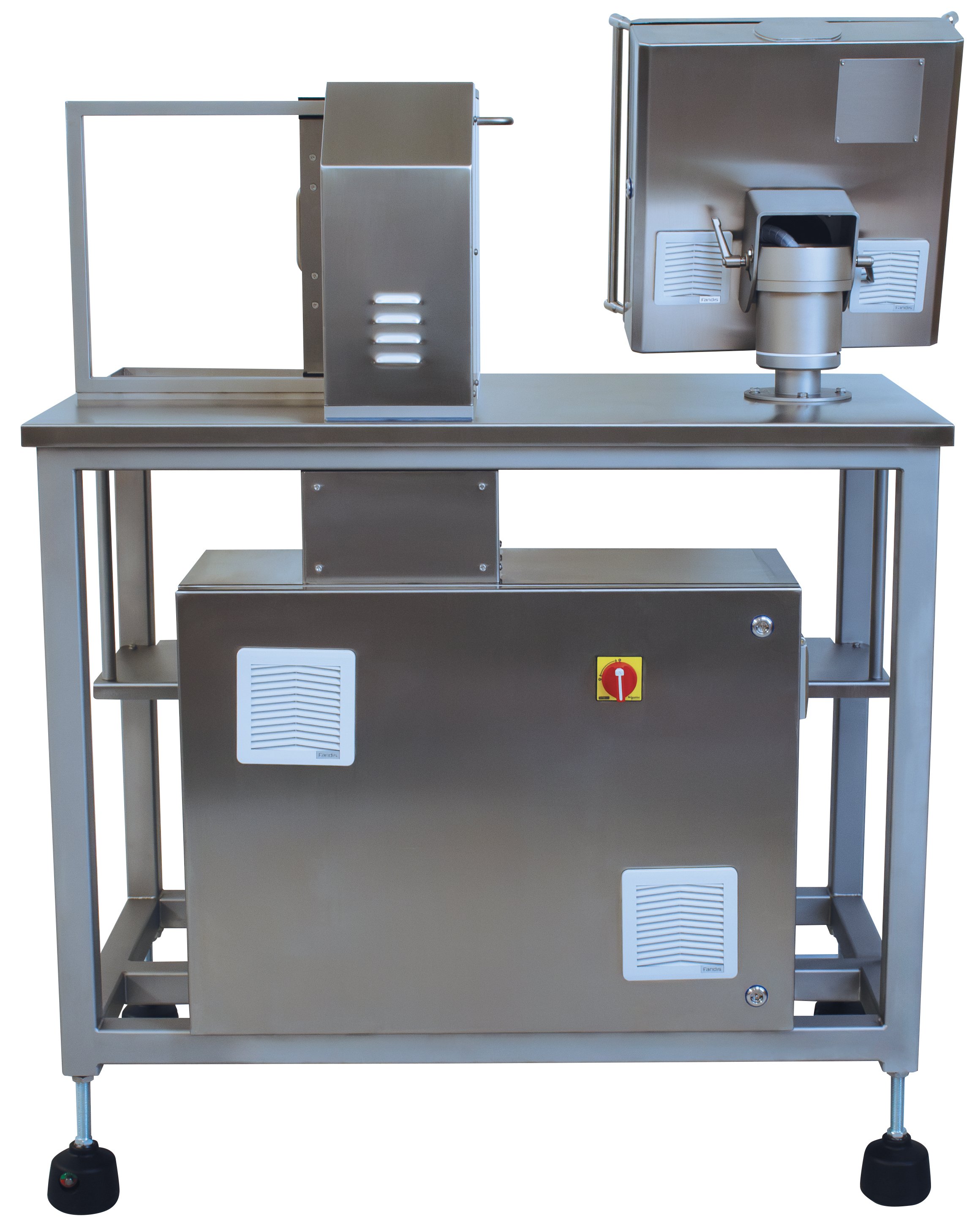

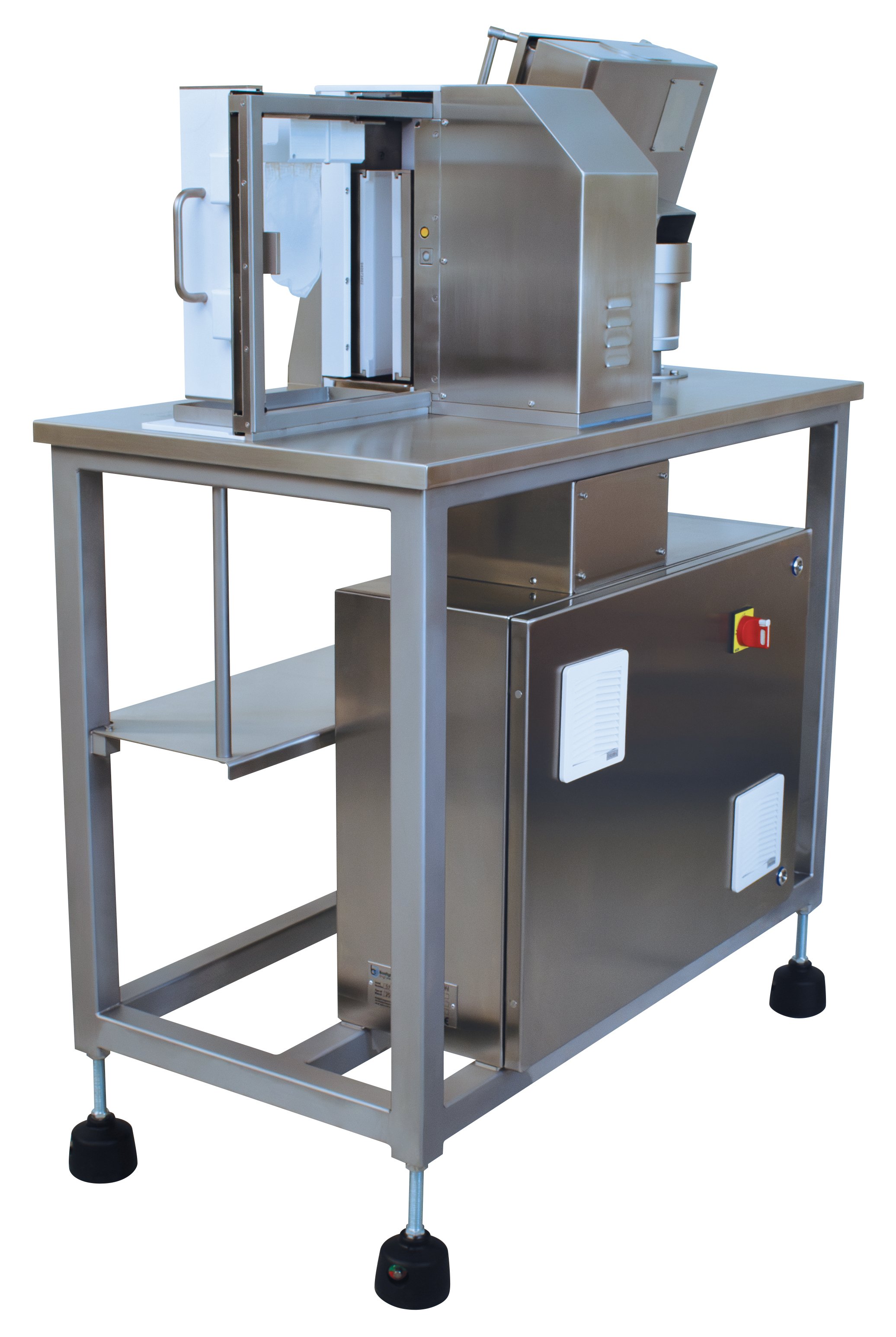

LDB-Pro IV Bag Leak Tester

Pharmaceuticals

A compact, mobile IV bag testing solution, offering a non-destructive, non-invasive alternative to Blue Dye Ingress testing, featuring a toolless design compatible with various bag sizes—ideal for CCIT of IV bags ranging from 50 mL to 1 L in environments where space and convenience are critical.

IV Bags

icon-23

Highlights

  • CCIT for IV Bags from 50 ml to 1 L
  • Non-destructive, non-invasive alternative to Blue Dye Ingress
  • Toolless design compatible with various bag sizes
  • Compact and mobile design ideal for convenience and limited spaces
icon-19

Technical Features

icon-12
  • Container Applications: IV Bags 50 mL to 1 L
  • Products: Saline, Plasma, Viscous, and Oily-based content
  • Bag dimensions: Up to approximately 330 x 120 x 55 mm.
  • Speed: 2-3 containers per minute
  • Technology: CCIT
  • Inspection Features: Non-invasive, Non-Destructive, CCIT based on Force Decay, Test Sensitivity detects leaks down to 200-300 µm, Smart HMI for real-time test review.
icon-20

Additional Benefits

icon-12
  • Tool-free design
  • Intuitive HMI
  • Easily disassembled for ease of cleaning
  • Remote assistance available
icon-21

Technology

icon-12
  • Container Closure Integrity Testing is a non-destructive measurement technology
  • Test Type: Force Decay which allows you to define a specific sensitivity for more accurate test results; destructive methods deliver pass/fail results.
  • Alternative to Methylene blue dye-ingress
icon-22

Quality Assurance

icon-12
  • GAMP 5-compliant software validation and lifecycle management
  • IQ/OQ validation package available
  • 21 CFR Part 11 compliant HMI with reporting and audit trail capability
  • Supports EU GMP Annex 1 compliance
